Elbow Beveling Machine

Elbow beveling machine

We offer your elbow beveling machine according your requirements.

Video of elbow beveling machine





Technical characteristic

Diameter of elbow, mm
33-76
89-159
89-219
159-273
159-325
273-430
325-630
Weight, kg
2600
4100
5300
6300
8600
10000
22000
Electric capacity, kW
11
17
20
26
39
51
75
Max pressure in a hydraulic system, MPA
7
7
7
7
7
7
7
Working pressure in a hydraulic system, MPA
5
5
5
5
5
5
5
Processing speed, sec/pieces
20-60
35-100
45-180
80-260
100-320
160-380
200-500

Photo gallery

  • Elbow beveling machine  » Click to zoom ->

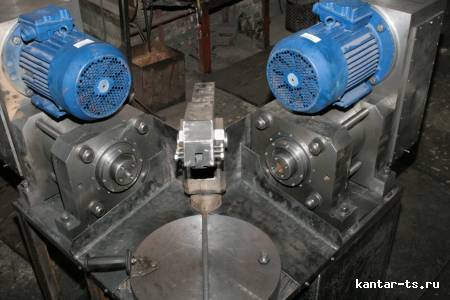

    Elbow beveling machine

  • Beveling machine  » Click to zoom ->

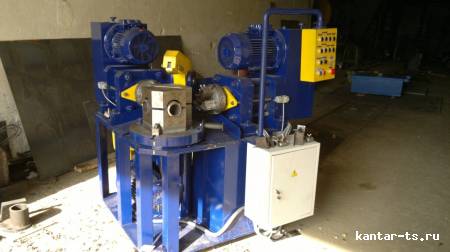

    Beveling machine

  • Beveling machine (AC)  » Click to zoom ->

    Beveling machine (AC)

Elbow beveling machine is designed to simultaneous processing of 2 ends of elbow. In the video you can see beveling process. Elbow beveling machine has 2 beveling heads that work in a same time. You can adjust feed rate of elbow.  Beveling machine has mechanical or hydraulic lock for safety working.

Simultaneous processing of 2 ends of elbow improves the performance of the equipment.
